HOT DIP GALVANIZING

​
Hot dip galvanization is a process of subjecting the steel material to a protective zinc coating against corrosion, by dipping the articles in a molten bath of zinc.  The coating of zinc by dipping process gives an excellent protection to the steel internally and externally.
Hot dip galvanizing is performed to British Standard BS ISO 1461, American Standard ASTM A-123 or to any other approved international standard as desired by the client.

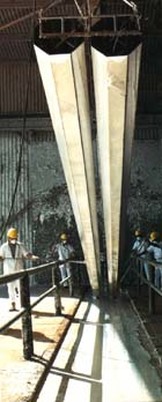

Working capacity of  our+plant is about 50,000 tons per year.  Size of the molten zinc bath tank is L12.8M x B1.22M x H1.22M.    Poles & structures in lengths over 12 Metre are subjected to double dipping process.

The following are the normal standards achieved in terms of zinc coating thickness to the steel : ​

---

Galvanizing Standard
British Standard
BS ISO 1461
American Standard
ASTM A-123

Steel Thickness
5mm and over
2mm to 5mm
1mm to 2mm
3.18mm to 4.76mm
6.35mm and over

Min. Av. Zinc Coating  Thickness
610 gm/M²
460 gm/M²
335 gm/M²
610 gm/M²
702 gm/M²
